Barcode Scanner

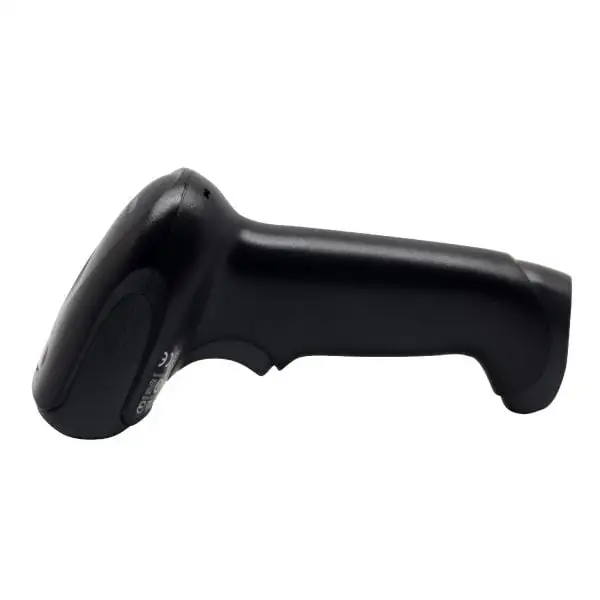

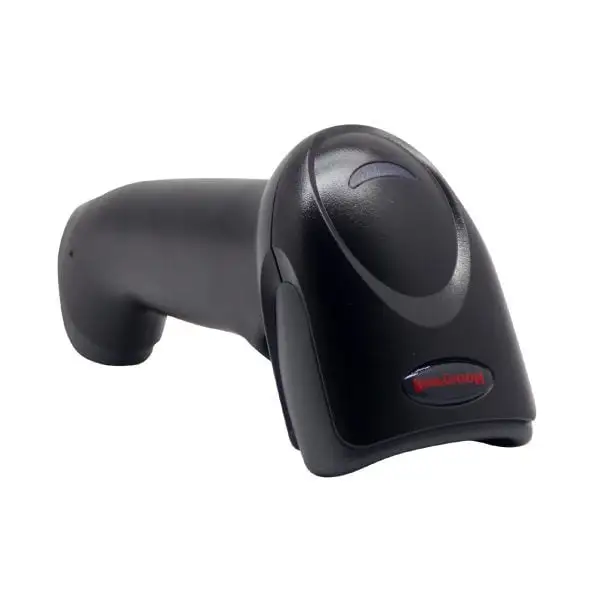

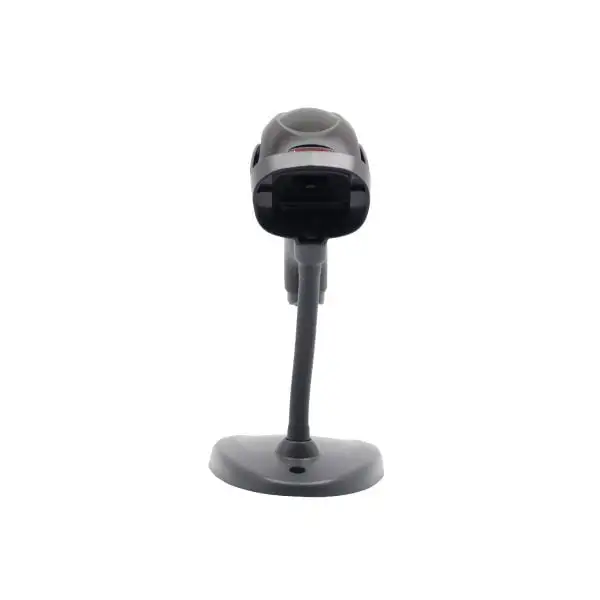

MP1250-Barcode Scanner

MP1250-Barcode Scanner

Category:

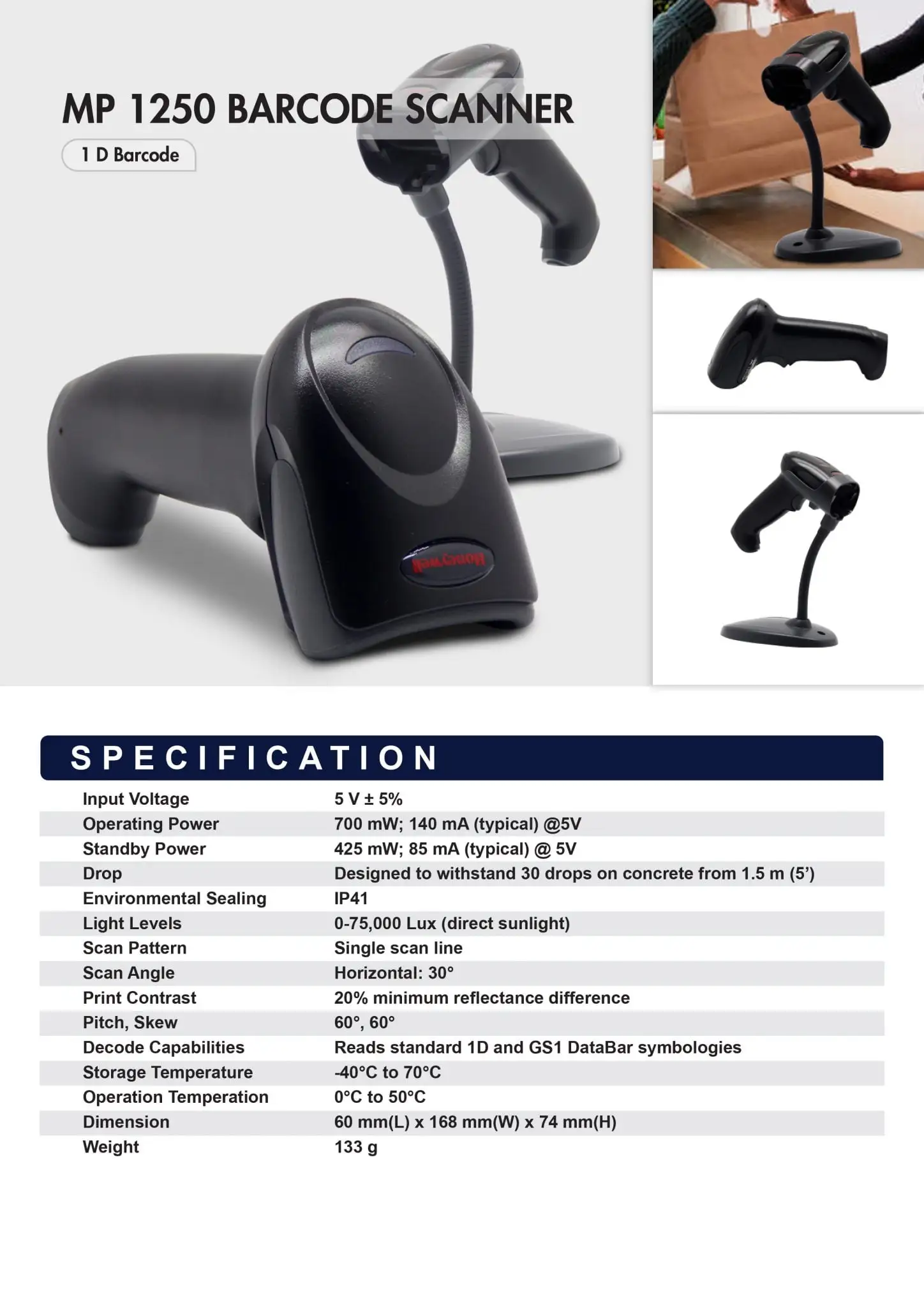

DIMENSIONS 60 mm(L) x 168 mm(W) x 74 mm(H)
WEIGHT 133 g
INPUT VOLTAGE 5 V ± 5%
OPERATING POWER 700 mW; 140 mA (typical) @5V
STANDBY POWER 425 mW; 85 mA (typical) @ 5V
INTERFACES Multi-interface; includes USB (HID Keyboard, Serial, IBM OEM), RS232 (TTL + 5V, 4 signals), Keyboard Wedge, RS-232C (± 12V), IBM RS485 supported via adapter cable
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE -20°C to 60°C (-4°F to 140°F)
HUMIDITY 5% to 95% relative humidity, non-condensing
DROP Designed to withstand 30 drops on concrete from 1.5 m (5’)
ENVIRONMENTAL SEALING IP41
LIGHT LEVELS 0-75,000 Lux (direct sunlight)
SCAN PATTERN Single scan line
SCAN ANGLE Horizontal: 30°
PRINT CONTRAST 20% minimum reflectance difference
PITCH, SKEW 60°, 60°
DECODE CAPABILITIES Reads standard 1D and GS1 DataBar symbologies
