Barcode Scanner

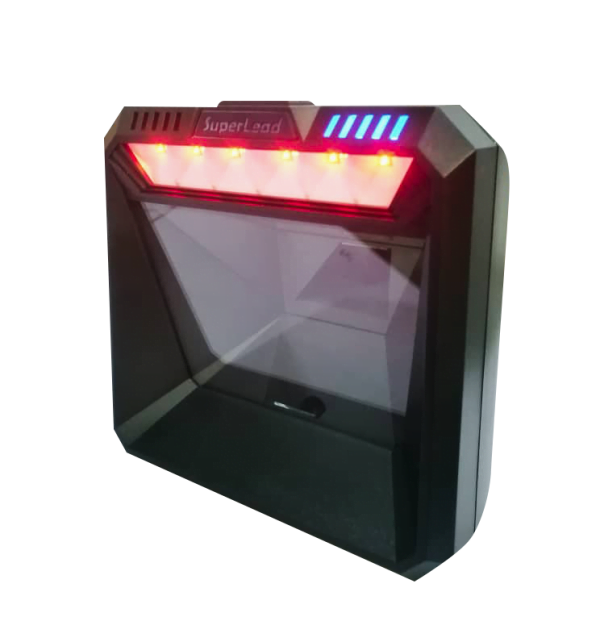

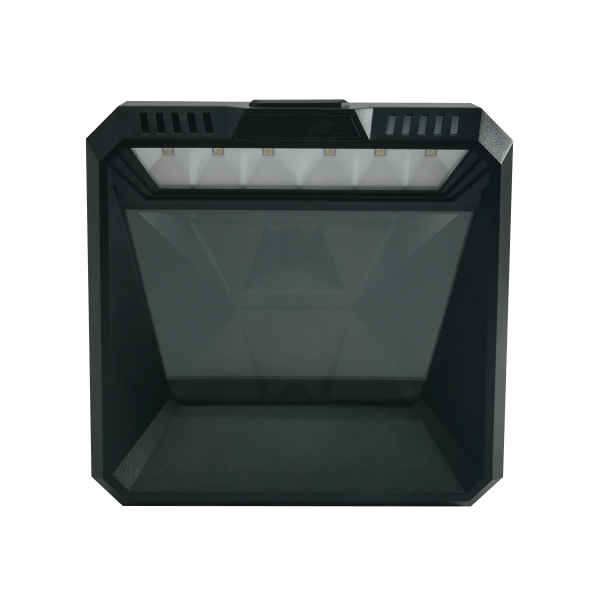

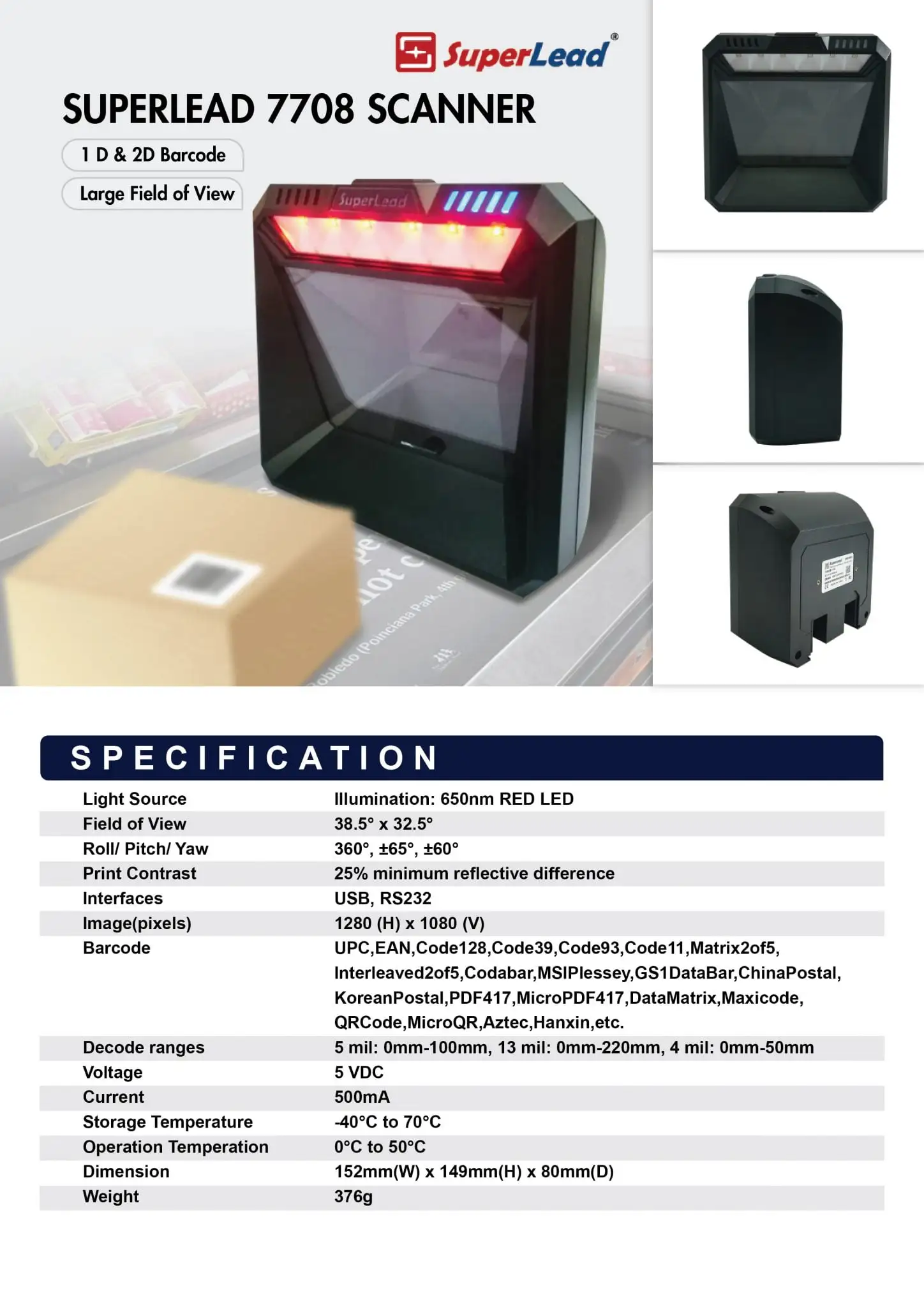

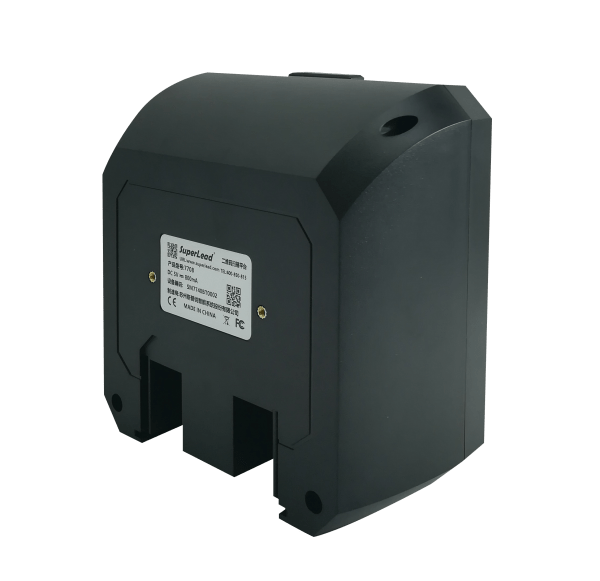

SUPERLEAD 7708-Barcode Scanner

SUPERLEAD 7708-Barcode Scanner

Category:



LIGHT SOURCE Illumination: 650nm RED LED
FIELD OF VIEW 38.5° x 32.5°
ROLL/ PITCH/ YAW 360°, ±65°, ±60°
PRINT CONTRAST 25% minimum reflective difference
INTERFACES USB, RS232
IMAGE(PIXELS) 1280 (H) x 1080 (V)
BARCODE UPC,EAN,Code128,Code39,Code93,Code11,Matrix2of5, Interleaved2of5,Codabar,MSIPlessey,GS1DataBar,ChinaPostal, KoreanPostal,PDF417,MicroPDF417,DataMatrix,Maxicode, QRCode,MicroQR,Aztec,Hanxin,etc.
DECODE RANGES 5 mil: 0mm-100mm, 13 mil: 0mm-220mm, 4 mil: 0mm-50mm
VOLTAGE 5 VDC
CURRENT 500mA
STORAGE TEMPERATURE -40°C to 70°C
OPERATION TEMPERATION 0°C to 50°C
DIMENSION 152mm(W) x 149mm(H) x 80mm(D)
WEIGHT 376g
