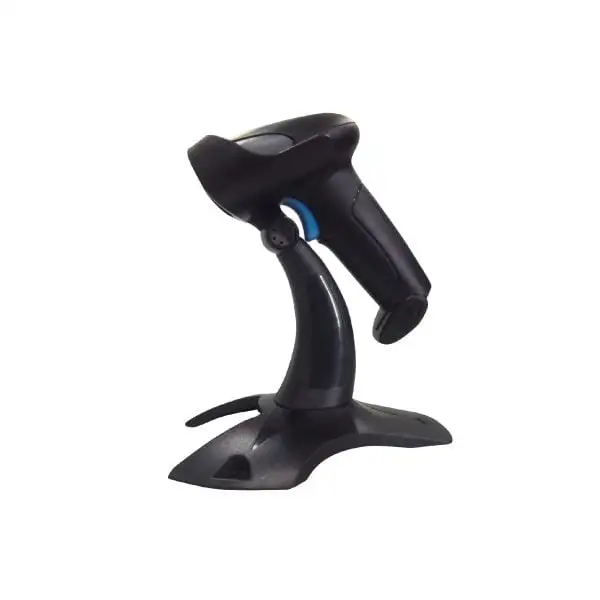

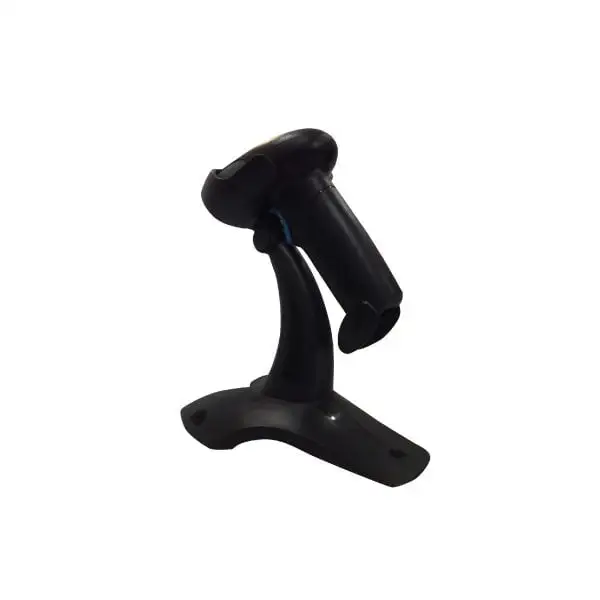

MP5010-Barcode Scanner

Category:

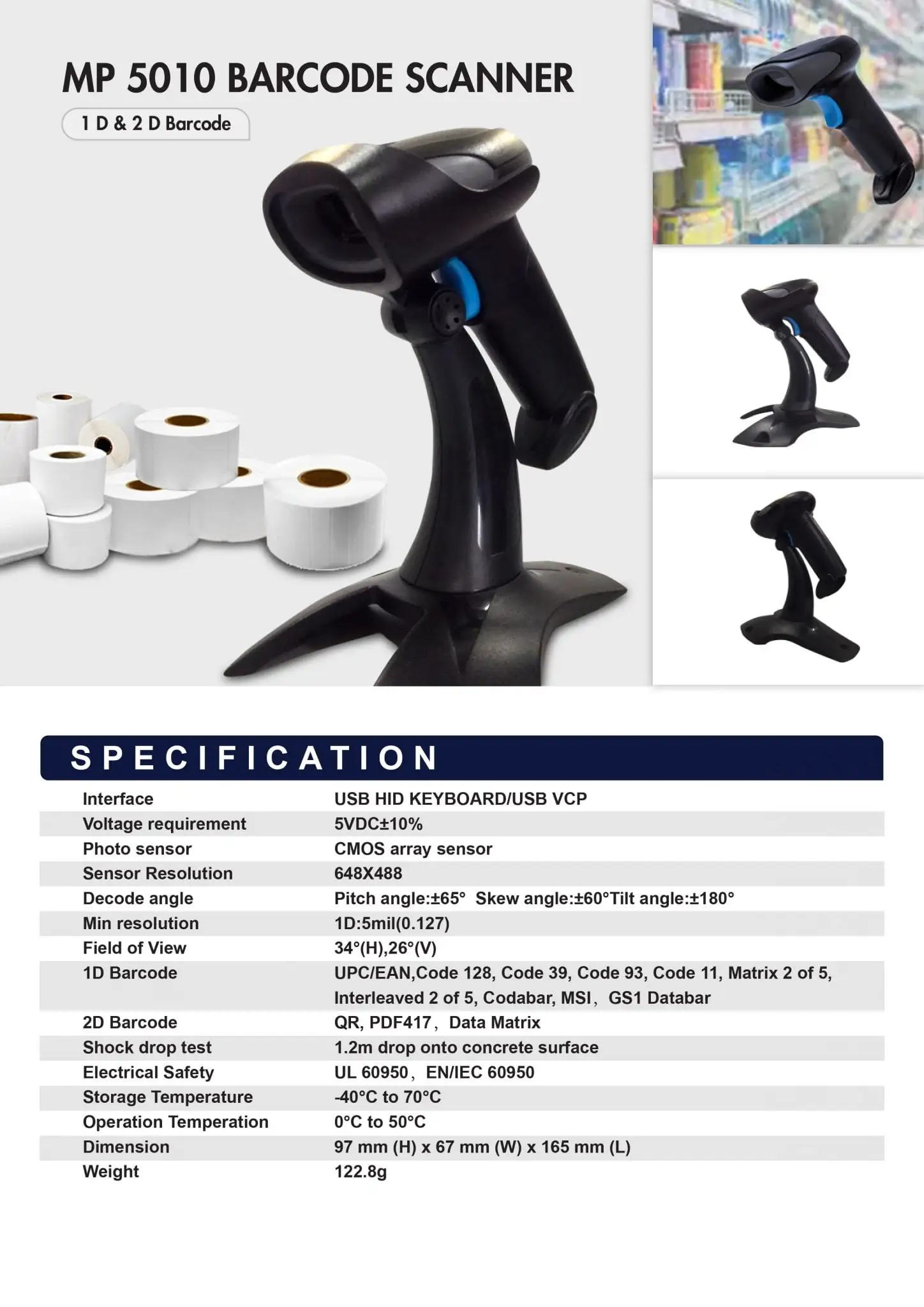

INTERFACE USB HID KEYBOARD/USB VCP
VOLTAGE REQUIREMENT 5VDC±10%
PHOTO SENSOR CMOS array sensor
SENSOR RESOLUTION 648X488
DECODE ANGLE Pitch angle:±65° Skew angle:±60°Tilt angle:±180°
MIN RESOLUTION 1D:5mil(0.127)
FIELD OF VIEW 34°(H),26°(V)
1D BARCODE UPC/EAN,Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI,GS1 Databar
2D BARCODE QR, PDF417,Data Matrix
DIMENSIONS 97 mm H x67 mm W x165 mm D
WEIGHT 122.8g
SHOCK DROP TEST 1.2m drop onto concrete surface
AMBIENT LIGHT fluorescent 4000 lx max , direct sun light 80,000 lx max ,white light 4000
ELECTRICAL SAFETY UL 60950,EN/IEC 60950
EMI/RFI FCC Part 15 Class B,EN 55024/CISPR 22
ENVIRONMENTAL RoHS
