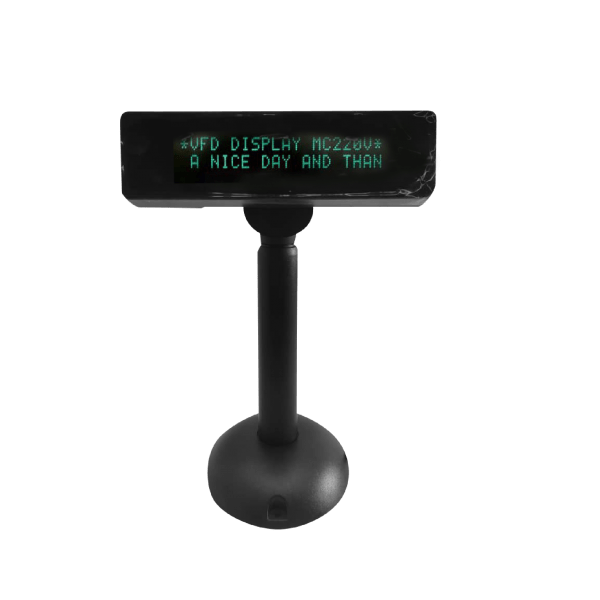

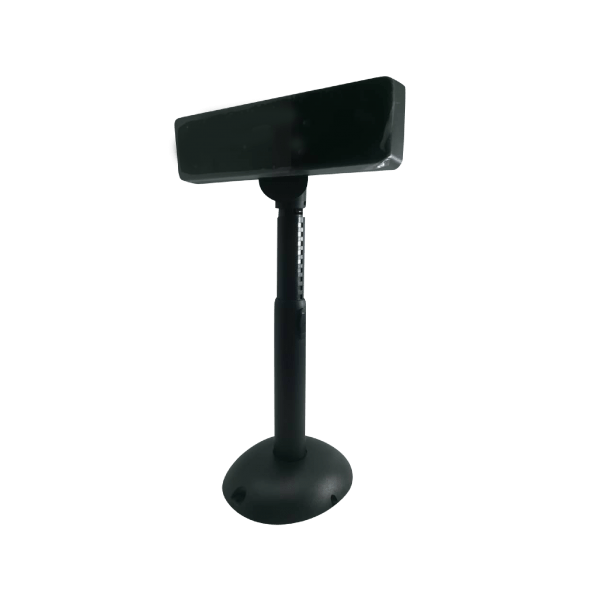

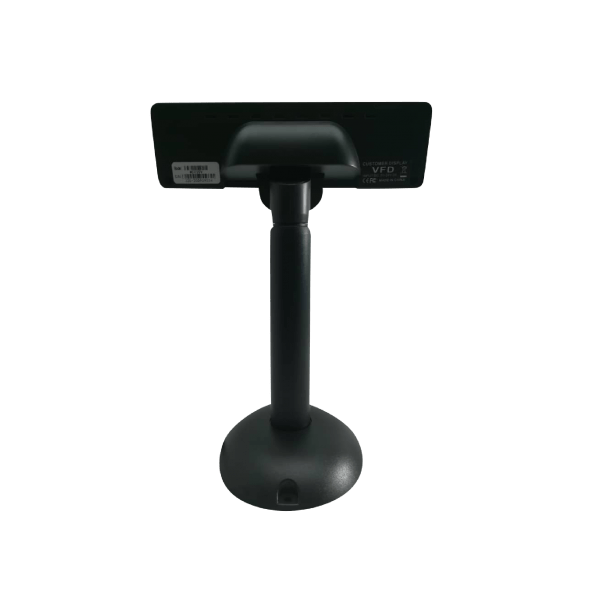

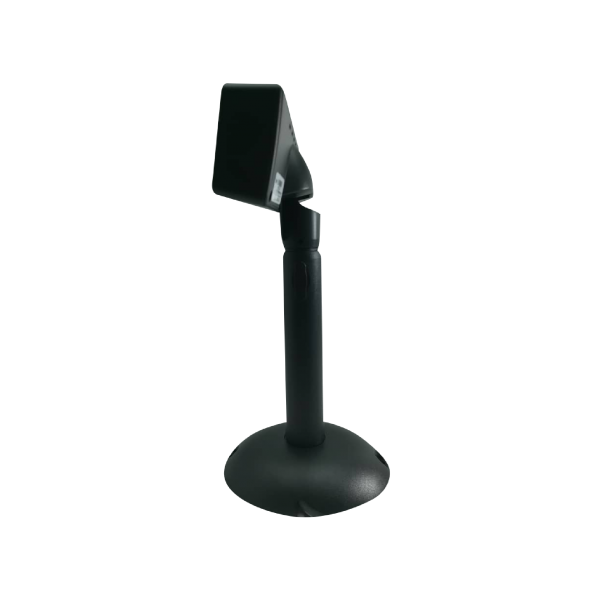

MC220V-Monitor Display

Category:



SERIES PD Series
INTERFACE RS232/ USB
DISPLAY METHOD Vacuum Fluorescent Display (Blue-green)
NUMBER OF CHARACTERS 40 (20 columns* 2 lines)
BRIGHTNESS 500~1000 cd/m2
CHARACTER FONT 5* 7 dot matrix
CHARACTER TYPE 95 Alphanumeric, 32 International Characters
CHARACTER SIZE 9.02(H)* 5.25(W)mm
DOT SIZE ( X* Y ) 0.86* 1.05mm
DOWNLOAD CHARACTERS 9 characters
POLE DIMENSION Per support length: 339(L)* 34(Dia)mm
VIEWING AANGLE Max. 135°
HORIZONTAL ROTATION Max. 355°
COMMAND MODE LD220,EPSON POS D101, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL
LANGUAGE SUPPORT FRENCH, DEUTSCH, ENGLISH, DENISH, SWISS, ITALIAN, SPANISH, JAPANESE, SLAVONIC, RUSSIAN, PORTUGUESE, CANADIAN, CANADIAN, NORDIC, TURKISH, GREEK, WEST EUROPEAN LATIN, CP858, CP860, WPC1252, CP857 (TURKISH), POLISH,WPC1250,WPC1253, (GREEK), WPC1255 (HEBREW) , WPC1251, CP866, CP852, CP737 (GREEK) CP858, CP864 (ARABIC), FARSI (IRAN)
CONNECTION Baud rate direct connection 9600 or 19,200 bps
RELIABILITY MTBF 30,000 hours
CONSUMPTION 5~24V DC
PANEL DIMENSION 3.15(W)* 19.5(D)* 5.4(H)cm
BASE DIMENSION 12(W)* 14(D)* 2.5(H)cm
MINIMUM HEIGHT 27.5cm
MAXIMUM HEIGHT 40cm
NET WEIGHT 0.75kg
PACKING DIMENSION 25*15*10cm
GROSS WEIGHT 1kg
